Description

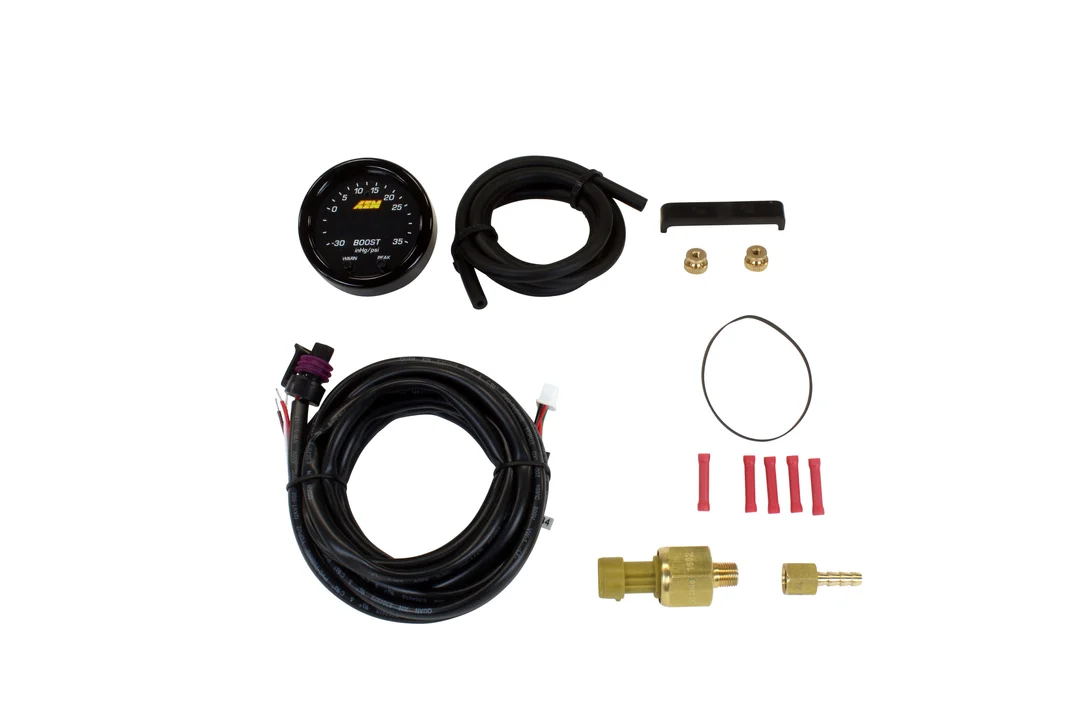

AEM 30-0306 – X-Series Boost Pressure -30inHg 35psi Gauge
Boost Gauge – X-Series – -30-35 psi – Electric – Digital – 2-1/16 in Diameter – Black Face – Each
X-Series Boost Pressure Gauge -30inHg-35psi – -1-2.5bar, Black Bezel and Black Faceplate
X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
- 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
- Slim 0.825″ overall gauge depth and 0.200″ cup depth – mount them virtually anywhere!
- Programmable center LED is 87% larger than original AEM gauges
- 24 green outer LEDs for quick reference to engine parameter
- User selectable standard or metric display ( -30in/Hg~35PSI / -1~2.5BAR)
- Peak/Recall via gauge face buttons
- User selectable threshold warnings
- Optional silver bezel and white faceplate accessory kit available (sold separately)
- AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
- 0-5v analog outputs for transmitting data to EMS or Data Logger
- Auto dimming sensor delivers ideal display brightness
- Positive locking connectors provide secure connection
Brand: AEMCategory: Gauges and Gauge AccessoriesEmission Code: 5Gauge Diameter: 21/16part type: Multi-Purpose Boost / Vacuum GaugeProduct Type: Boost GaugeSub Category: Instrument PanelWarning: California Proposition 65Warranty: Manufacturer’s 1 Year Warranty
