Description
The height (excluding terminals) of this mini breaker is 1.18′ (30 mm). The breakers are taller than traditional fuses and may not fit into some holder/boxes

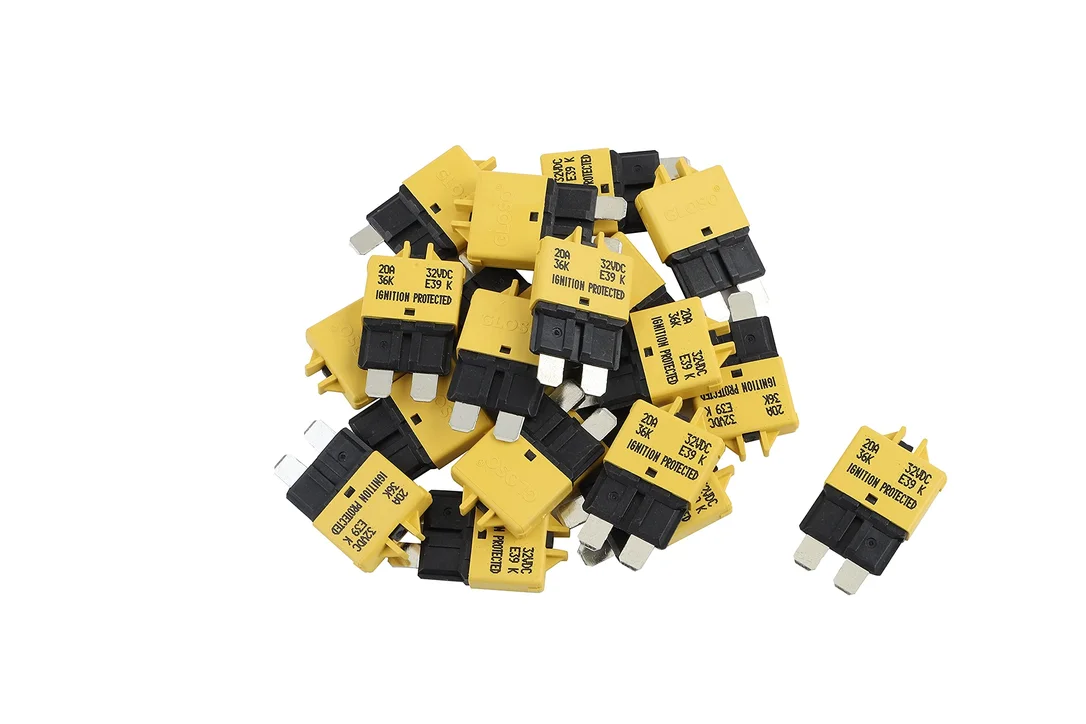

Single Pole Thermal Type Breakers Rating: 20A @ 32Vdc (25 Pack)
Interrupt Rating: 2,000A @ 32Vdc
Operating Temperature Rating: –40°F (–40°C) to 185°F (85°C)
Storage Temperature Rating: –40°F (–40°C) to 260°F (125°C)
Materials: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals
Marking: Cover is color-coded to amperage ratings
Termination: 5.2mm wide blades compatible with ATC type fuse blocks
Compliances: SAEJ553; SAEJ1171 (Ignition protected)
